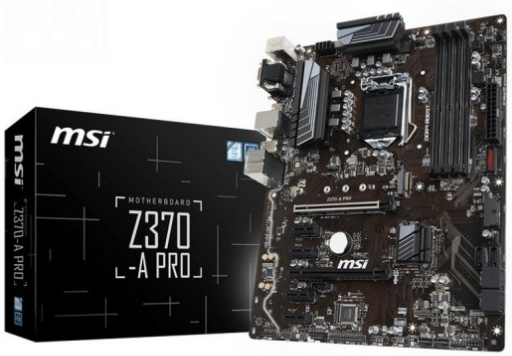

MSI Z370-A Pro

  • CPU
    • Supports 8th Gen Intel® Core™ processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
  • Chipset
    • Intel® Z370 Chipset
  • Main Memory
    • 4 x DDR4 memory slots, support up to 64GB
    • Supports 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2667/ 2400/ 2133 MHz*
    • Dual channel memory architecture
    • Supports non-ECC UDIMM memory
    • Supports Intel® Extreme Memory Profile (XMP)
    • * Please refer to www.msi.com for more information on compatible memory.
  • Slots
    • 1 x PCIe 3.0 x16 slot (PCI_E1, supports x16 mode)
    • 1 x PCIe 3.0 x16 slot (PCI_E4, supports x4 mode)
    • 4 x PCIe 3.0 x1 slots
  • Multi-GPU
    • Supports 2-Way AMD® CrossFire™ Technology
  • Onboard Graphics
    • 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
    • 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
    • 1 x DisplayPort, supports a maximum resolution of 4096x2304@24Hz, 2560x1600@60Hz, 3840x2160@60Hz, 1920x1200@60Hz
  • Storage
    • Intel® Z370 Chipset
    • 6 x SATA 6Gb/s ports*
    • 1 x M.2 slot (Key M)
    • Support up to PCIe 3.0 x4 and SATA 6Gb/s
    • Supports 2242/ 2260 /2280/ 22110 storage devices
    • Intel® Optane™ Memory Ready**
    • Supports Intel® Smart Response Technology for Intel Core™ processors
    • * The SATA1 port will become unavailable when M.2 SATA SSD has been installed in M.2 slot.
    • ** Please refer to page 87 for Intel® Optane™ Memory Configuration.
  • RAID
    • Intel® Z370 Chipset
    • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • USB
    • Intel® Z370 Chipset
    • 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
    • 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
  • Audio
    • Realtek® ALC892 Codec
    • 7.1-Channel High Definition Audio
  • LAN
    • 1 x Intel® RTL8111H Gigabit LAN controller
  • Internal I/O Connectors
    • 1 x 24-pin ATX main power connector
    • 1 x 8-pin ATX 12V power connector
    • 6 x SATA 6Gb/s connectors
    • 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
    • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    • 1 x 4-pin CPU fan connector
    • 1 x 4-pin water pump fan connector
    • 4 x 4-pin system fan connectors
    • 1 x Front panel audio connector
    • 2 x Front panel connectors
    • 1 x TPM module connector
    • 1 x Chassis Intrusion connector
    • 1 x Serial port connector
    • 1 x Parallel port connector
    • 1 x Thunderbolt Add-on Card Connector
    • 1 x Clear CMOS jumper
  • Back Panel I/O Ports
    • 1 x PS/2 mouse & keyboard combo port
    • 4 x USB 3.1 Gen1 Type-A ports
    • 1 x VGA port
    • 1 x DVI-D port
    • 1 x DisplayPort
    • 1 x LAN (RJ45) port
    • 2 x USB 2.0 ports
    • 6 x audio jacks
  • Dimension
    • 12.0 in. x 8.9 in. (30.5 cm x 24.4 cm)
    • ATX Form Factor
  • Mounting
    • 9 mounting holes
119,90 €
